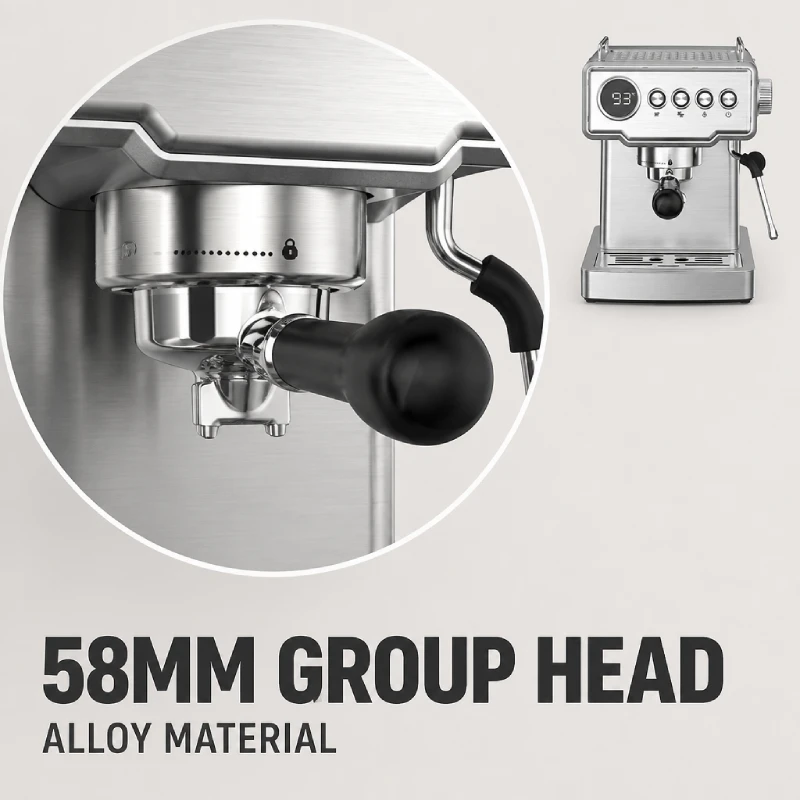

58mm Brewing Group
Alloy group head supports professional-style espresso preparation.

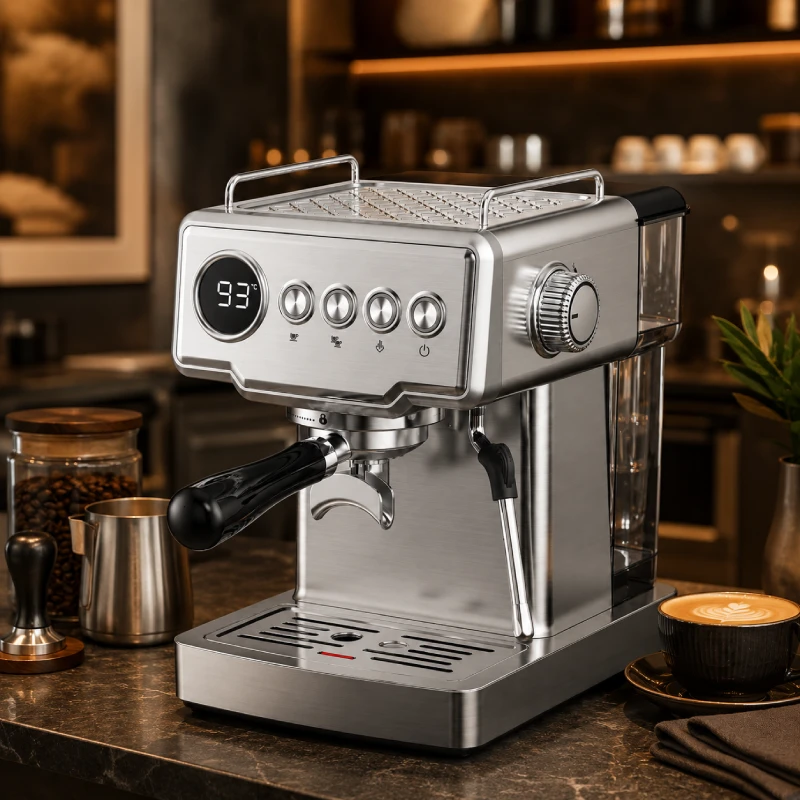

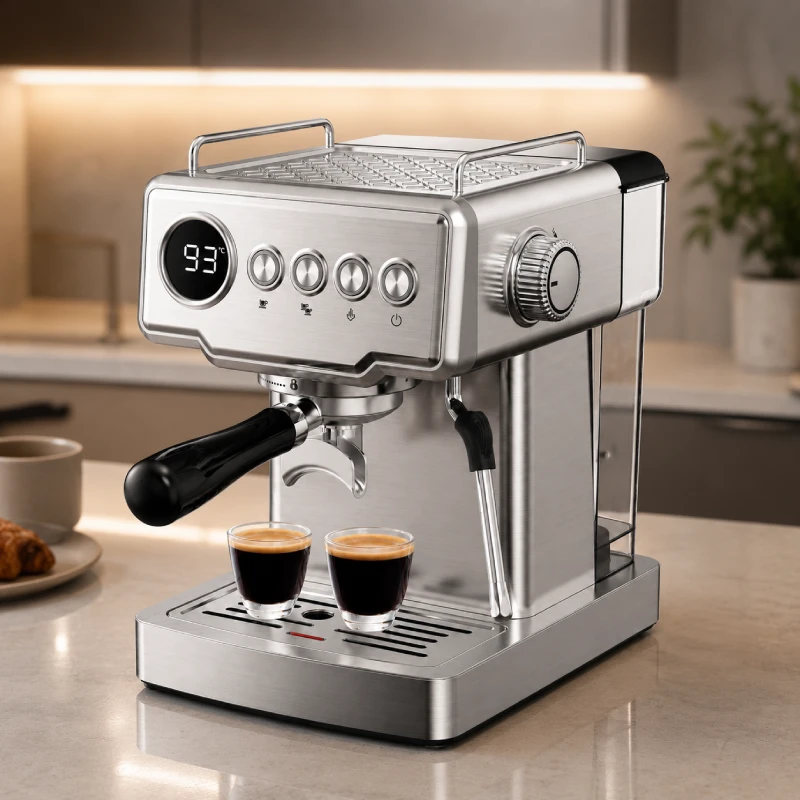

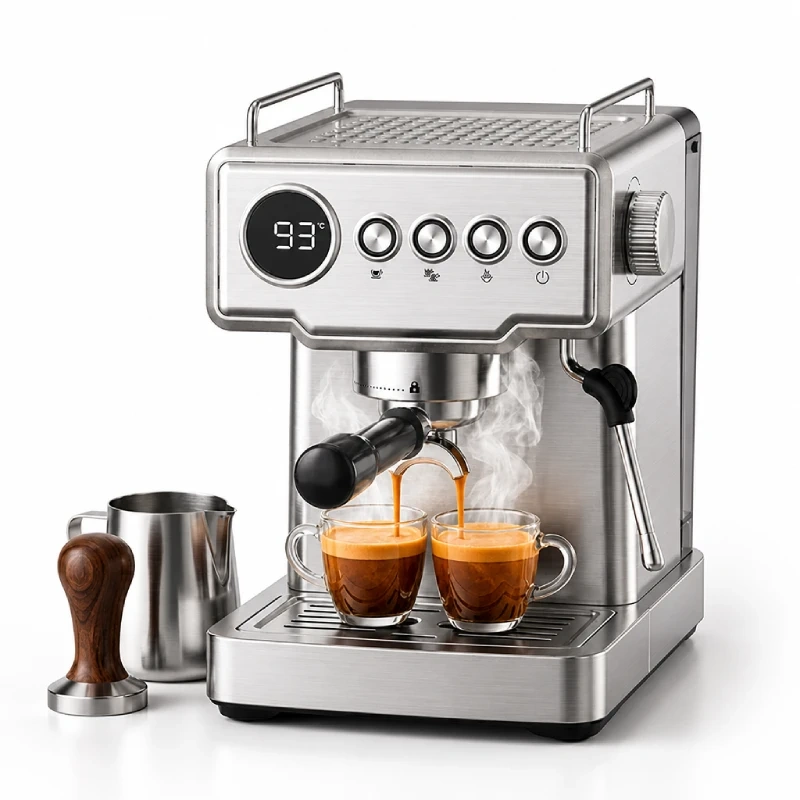

EM3212 Espresso Coffee Machine
58mm Stainless Steel Espresso Machine with Digital Control

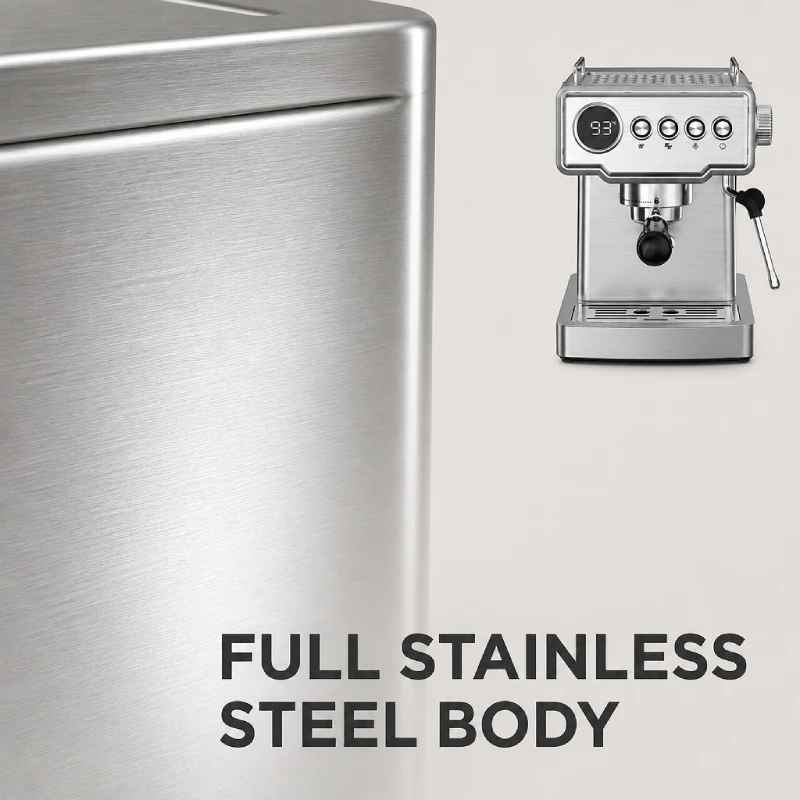

EM3212 features a stainless steel body, 58mm alloy brewing group, digital controls, PID heating and adjustable extraction settings for home, office and light commercial OEM programs.
20 Bar
Pump Pressure
1350 W
Rated Power
1.8 L
Water Tank
58mm Alloy; optional 51mm/58mm
Group Head Size
OEM options, MOQ and lead time are confirmed during project review.
A configurable product platform for global programs.
The EM3212 is a stainless steel espresso platform built around a professional-style 58mm alloy brewing group. Digital controls, pre-infusion and PID-regulated thermocoil heating support stable brewing at a stated 92°C.
Buyers can evaluate 51mm or 58mm brewing configurations, multiple pump pressures and optional professional accessories for different market programs.
BREWING CONTROL
Designed for your target applications.
Home coffee, offices, small cafés and private label espresso programs.
OEM CONFIGURATION
Ready for market-specific configuration.
110 V, 120 V, 220 V, 230 V and 240 V configurations are available where stated or subject to project confirmation.
Review specifications, packaging and order terms.

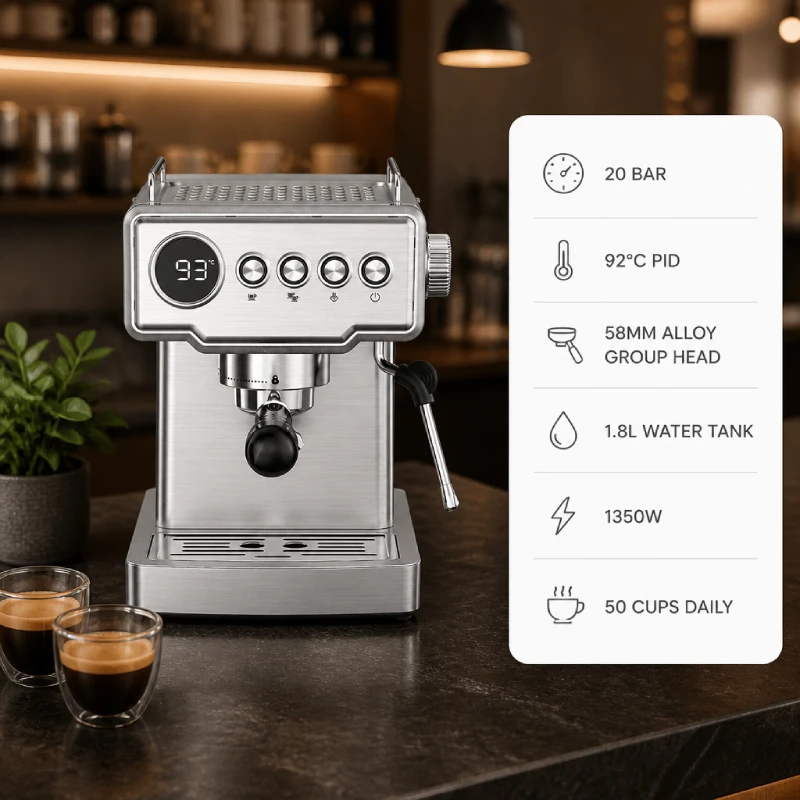

Technical Specifications
+−Product TypeEspresso Coffee Machine
Rated Voltage110–240 V options
Frequency50/60 Hz
Rated Power1350 W

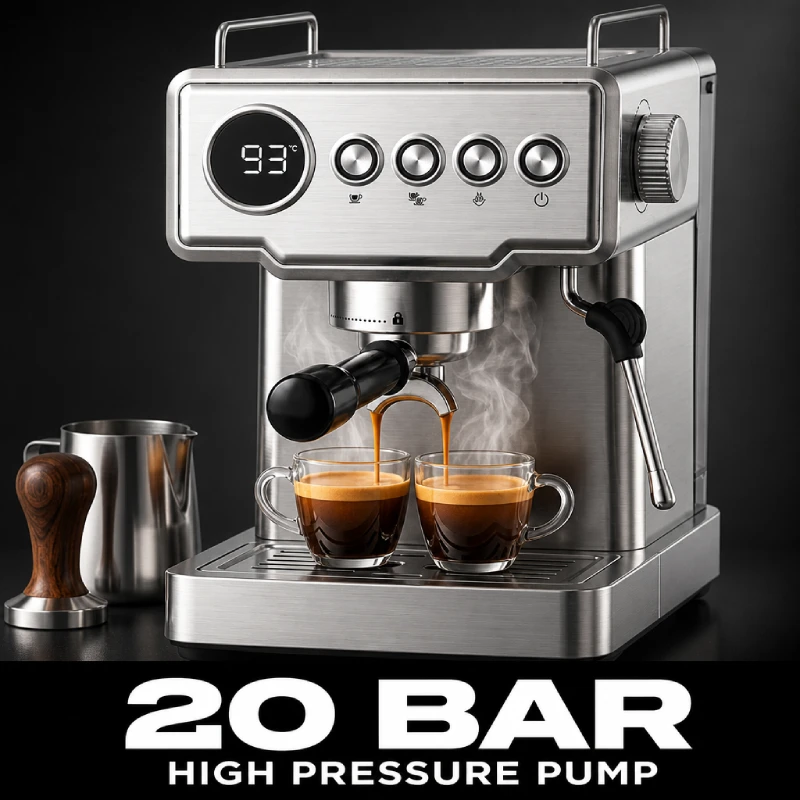

Pump Pressure20 Bar; optional 9/15/19/20 Bar
Water Tank Capacity1.8 L
Brewing Group58mm Alloy; optional 51mm/58mm
Control TypeButton Control with Digital Screen
Heating SystemThermocoil with PID Control
Nominal Brewing Temperature92°C
Product Size233 × 298 × 294 mm
Daily OutputUp to 50 cups
Lead Time45–50 days after deposit
Warranty1 Year
Packaging & Container Loading
+−Net Weight8.0 kg
Gross Weight9.6 kg
Gift Box313 × 264 × 363 mm
Carton560 × 329 × 369 mm
Quantity per Carton2 pcs
20GP800 pcs
40GP1650 pcs
40HQ1900 pcs
MOQ & Lead Time
+−Container Reference800 pcs
Lead TimeConfirmed during project review
WarrantyConfirmed for the selected model and configuration
Certification & Compliance Notes
+−Certification and compliance documents depend on the selected configuration and destination market. Confirm applicable certificates with YSELE before order.
Product features built around performance and market fit.
PID Heating Control
Thermocoil heating and PID control target stable brewing temperature.
Adjustable Brewing
Temperature and extraction time can be programmed.
Pre-Infusion
Pre-soaking supports more even coffee-bed saturation.
Flexible Configuration
Optional 51mm/58mm groups and 9, 15, 19 or 20 bar pressure configurations.
Professional Accessories

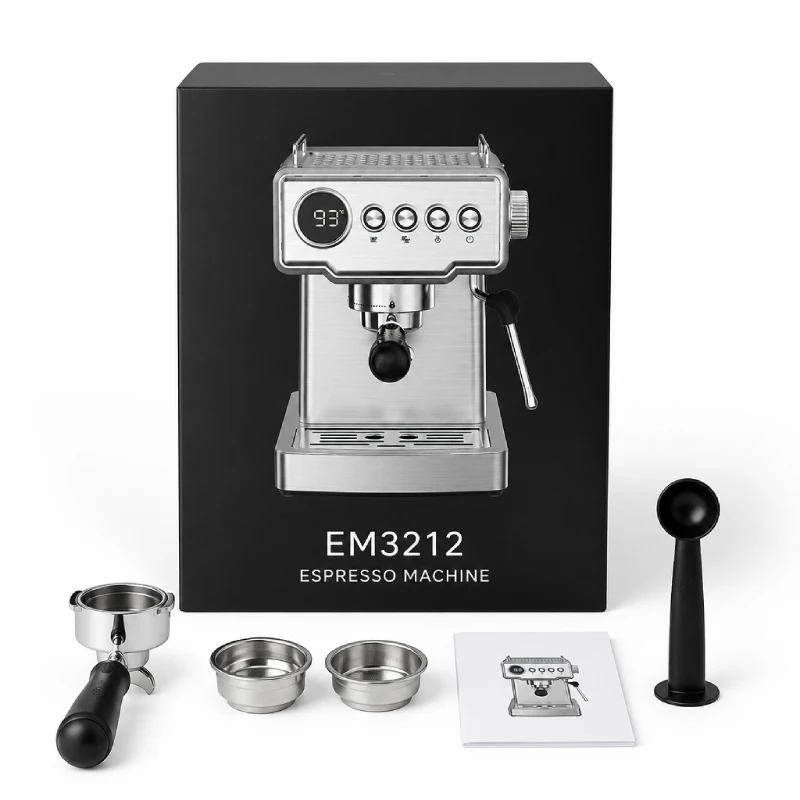

Optional pitcher, tamper, bottomless filter, portafilter and blind filter.
Configure EM3212 for your market.
Final options depend on the target market, order quantity, technical configuration, packaging requirements and certification route.
Discuss Your Configuration0
Logo & Branding
Custom logo, color and private label presentation are available for qualified projects.
0
Packaging Customization
Custom gift box, manual and export carton artwork can be developed for confirmed orders.
0
Market Configuration
Voltage, plug and selected functional configurations can be evaluated for the destination market.
