52 Grind Settings
The grinder supports settings from coarse grinding through espresso and Turkish-style fine grinding.

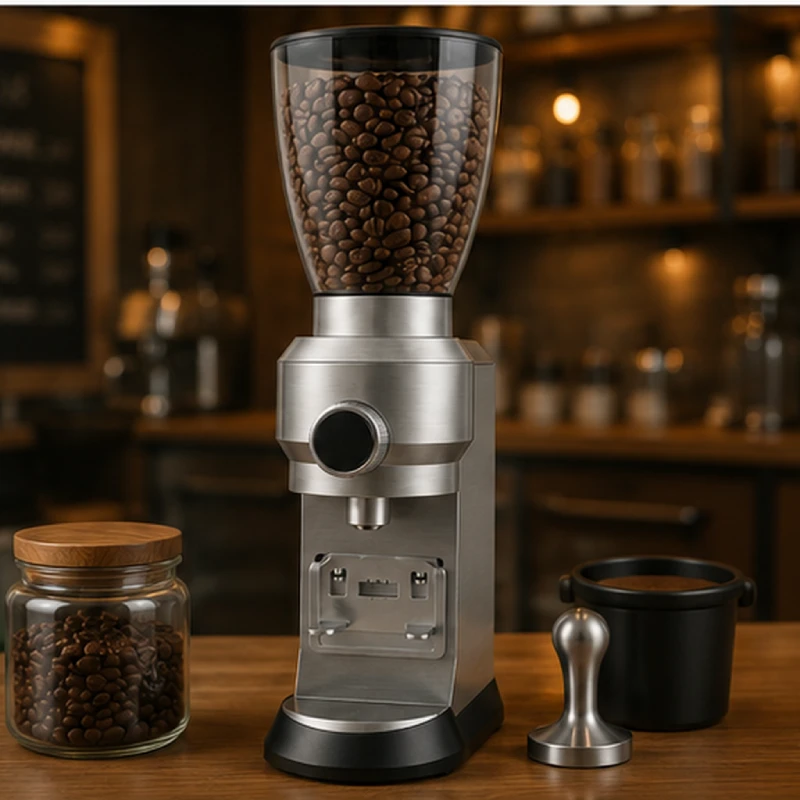

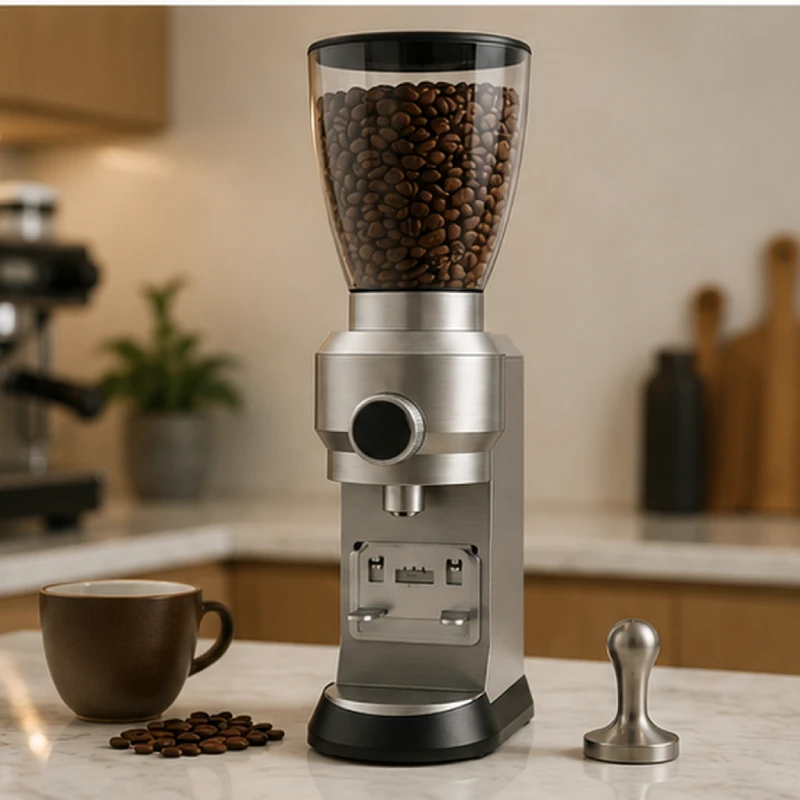

CG20 40mm Conical Burr Coffee Grinder
52-Level Conical Burr Grinder with 700 g Hopper
The CG20 combines a 40mm stainless steel conical burr, 52 grind levels, a 700 g bean hopper and a 180 W DC motor for espresso through Turkish-style fine grinding.
40mm Conical Burr
Burr System
52 Levels
Grind Settings
700 g
Hopper Capacity
180 W
Motor Power
OEM options, MOQ and lead time are confirmed during project review.
A configurable product platform for global programs.
The CG20 is a conical burr coffee grinder designed with 52 grind settings ranging from coarse grinding through espresso and Turkish-style fine grinding. It uses a 40mm stainless steel conical burr and a 180 W DC motor.
A 700 g bean hopper, stainless steel housing, touchscreen interface and anti-static technology support higher-capacity home and coffee service applications.
BREWING CONTROL
Designed for your target applications.
Advanced home coffee, cafés, coffee bars, restaurants and coffee equipment distribution.
OEM CONFIGURATION
Ready for market-specific configuration.
Available according to the destination market, product configuration and confirmed project requirements.
Review specifications, packaging and order terms.
Technical Specifications
+−Product TypeCoffee Grinder
Burr TypeConical Burr
Burr Diameter40mm
Burr MaterialStainless Steel
Grind Settings52 Levels
Grinding RangeCoarse to Espresso and Turkish Fine
Hopper Capacity700 g
Motor TypeDC Motor
Motor Power180 W
Control TypeTouchscreen
Anti-Static TechnologySupported
Body MaterialStainless Steel
Packaging & Container Loading
+−Net Weight9 kg
Gross Weight13 kg
Gift Box276 × 158 × 421 mm
Carton569 × 494 × 434 mm
Quantity per Carton4 pcs
20GP1500 pcs
40GP3150 pcs
40HQ3552 pcs
MOQ & Lead Time
+−Container Reference1500 pcs
Lead TimeConfirmed during project review
WarrantyConfirmed for the selected model and configuration
Certification & Compliance Notes
+−Certification and compliance availability varies by product model, configuration and destination market. Please confirm the applicable documents with YSELE before placing an order.
Product features built around performance and market fit.
40mm Conical Burr
The grinder uses a stainless steel 40mm conical burr.
180 W DC Motor
The DC motor provides power for different grinding requirements.
700 g Bean Hopper
The large hopper supports higher-capacity grinding workflows.
Anti-Static Technology
The anti-static system helps reduce coffee grounds retention and dispersion.
Touchscreen Interface
The digital control panel provides access to grinder settings.
Configure CG20 for your market.
Final options depend on the target market, order quantity, technical configuration, packaging requirements and certification route.
Discuss Your Configuration0
Logo & Branding
Support custom logo and private label presentation according to the confirmed project requirements.
0
Packaging Customization
Support customized gift boxes, manuals and shipping cartons according to the buyer’s branding requirements.
0
Market Configuration
Plug, voltage and selected product configurations can be evaluated according to the destination market.
